Henan Foils 1080G

Fully Automatic Hot Stamping Machine

Seven generations of engineering excellence 4 delivering high-performance, highefficiency hot stamping for the modern print and packaging industry.

OVERVIEW

What Is the 1080G?

Independently Developed. Continuously Refined.

The 1080G is a fully automatic hot stamping machine developed in-house and refined across seven generations of engineering improvements. It combines high performance with true operational efficiency 4 reducing labour, cutting material waste, and dramatically shortening production cycles.

Designed for the full spectrum of hot stamping applications: ordinary stamping, precision register stamping, and embossing stamping 4 all on a single platform.

Designed For

  • Trademarks & Labels
  • Cigarette & Wine Boxes
  • Gift & Luxury Packaging
  • High-End Print Finishing

PERFORMANCE HIGHLIGHTS

Built for Speed, Precision & Reliability

5.000

Sheets per Hour

Maximum rated output speed for peak productivity

160T

Max Working Pressure

Four-link pressure adjustment for balanced, uniform output

20min

Heat-Up Time

0°C to 100°C in just 20 minutes 4 solid-state chip heating

8kW/h

Energy Consumption

Top-down platform mechanics for energy-saving, eco-friendly operation

KEY FEATURES

Seven Smart Engineering Advantages

1. Chip Heating System

Solid-state chip heating with screen adjustment. Heats from 0°C to 100°C in 20 minutes 4 faster than conventional systems and easily replaceable.

2. Non-Stop Paper Feeding

The Feida feeder operates continuously without stopping the machine 4 maintaining maximum throughput and minimising downtime during paper loading.

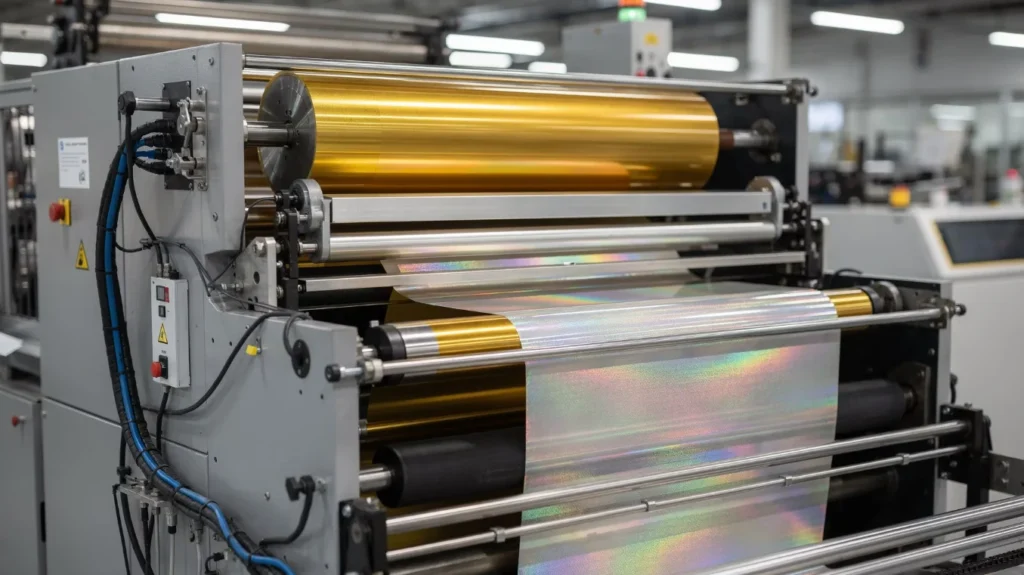

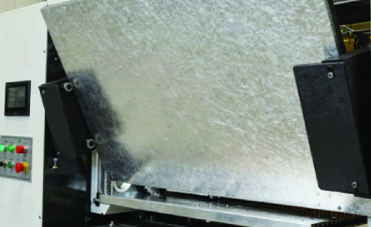

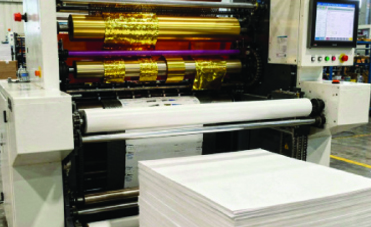

3. External Foil Retraction

External unwinding and rewinding structure eliminates conflict with the gripper bar system. Foil changeovers take just 233 minutes with no need to enter the machine.

4. Four-Link Pressure Adjustment

All four corners of the platen can be independently adjusted, enabling perfectly balanced pressure across the full stamping surface.

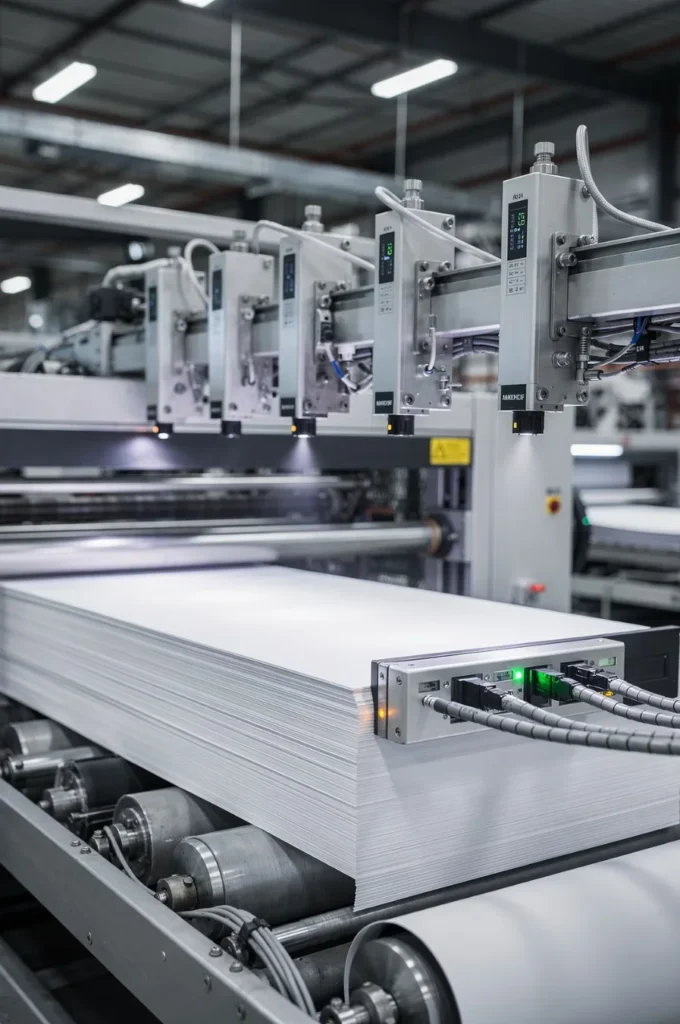

5. Fibre Optic Front Gauge

High-sensitivity fibre optic detection responds instantly to misaligned or skewed sheets 4 triggering an immediate machine stop to prevent waste and damage.

6. Speed Switching

Seamlessly switches between start-up speed and operational speed, allowing operators to dial in the perfect run setting for each job.

7. Energy-Efficient Platform

Top-down platform movement combined with mechanical leverage keeps power consumption to just 8 kW/h 4 cutting running costs
without compromising output.

ABOUT THE MACHINE

Seven Smart Engineering Advantages

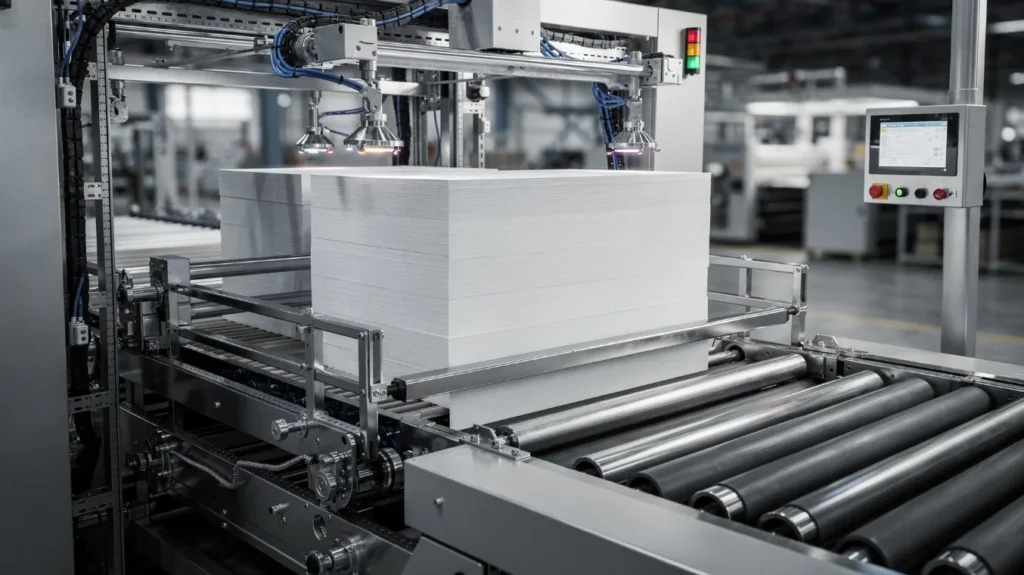

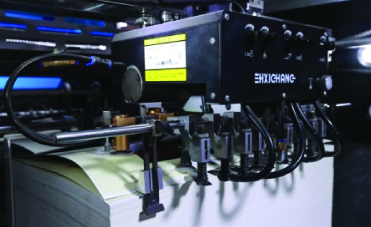

Feeding Section

Servo-motor-driven high-speed
Feida with four-suction, two/fourfeed structure. Adjustable suction angles handle everything from 100 gsm thin sheets to heavy board 4 smoothly and reliably.

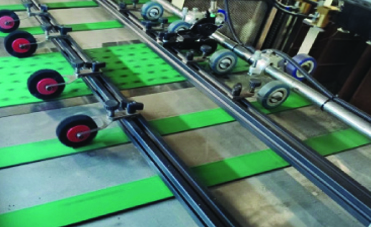

Transport Section

Synchronous belt drive with highprecision fibre optic tracking ensures stable, accurate paper movement from feeder to stamping zone 4 minimising registration errors.

Flat Press & Positioning

Aerospace-grade aluminium base plate for maximum stability. Gearadjusted stamping pressure with gripper bar positioning. Hot stamping dies are glued directly to the base plate for precision alignment.

Delivery Section

Gripper bars transfer finished sheets directly to the delivery table, which auto-descends for continuous stacking. Neat, automatic delivery saves operator time and reduces handling errors.

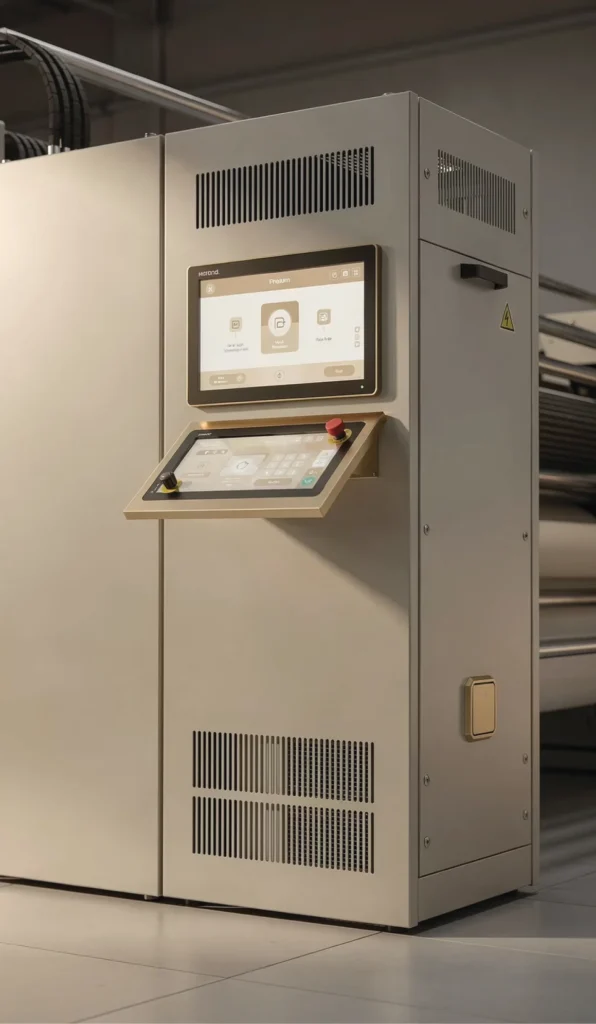

CONTROL SYSTEM

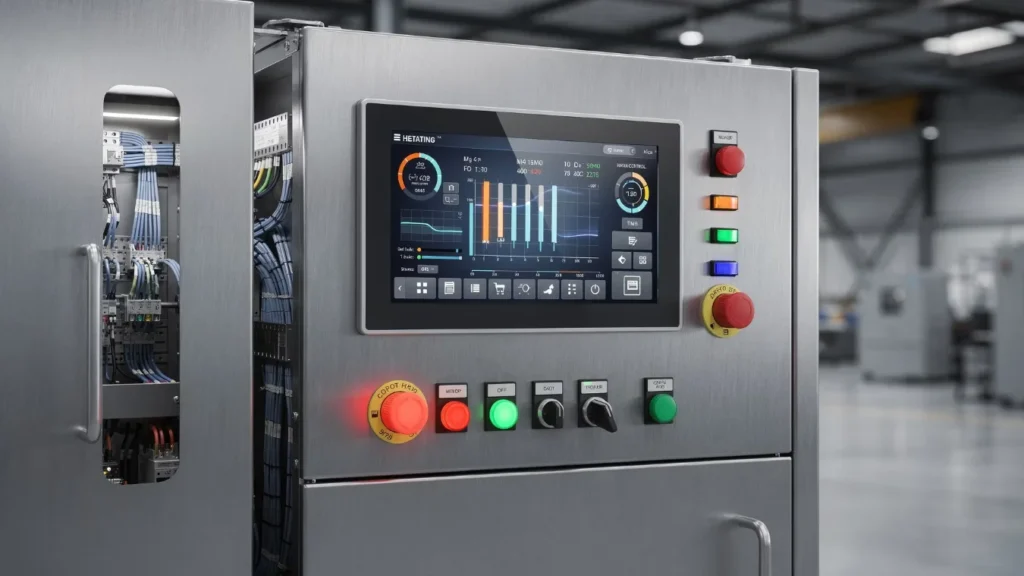

European-Standard Electrical Control

PLC at the Core

The electrical system is built around a Panasonic PLC controller 4 the industry benchmark for reliability and precision. A full-colour touch screen (Flexem) provides intuitive control over all machine functions, status display, data input, and operational settings. Electrical components and wiring are designed and assembled to European and American advanced national safety standards, ensuring compliance and peace of mind in any market.

Key Control Components

Panasonic PLC

Japan 4 system core

Omron Encoder

Japan 4 precision feedback

Schneider Components

France 4 safety & protection

Becker Vacuum Pump

Germany 4 reliable suction

COMPETITIVE EDGE

1080G vs. The Competition

Here is how the 1080G outperforms both traditional hot stamping machines and comparable models on the market today.

Direct Servo Drive

The Feida is driven directly by a servo motor 4 not a conventional transmission shaft. This delivers faster, smoother, and more precise paper feeding, reducing wear and improving consistency at high speeds.

233 Minute Foil Change

External foil unwinding and rewinding means operators never need to reach inside the machine. Changeovers are completed in under 3 minutes 4 versus 15+ minutes on traditional machines.

Double & Multi-Sheet Detection

Built-in double-sheet and multi-sheet control instantly detects feed errors. The machine stops automatically, protecting both the die and the substrate 4 and significantly reducing paper waste.

Pre-Load Paper Preparation

The machine supports pre-loading of the next paper stack while running 4 minimising stop time between jobs and boosting overall production output across a shift.

Premium Global Components

Every critical component 4 from the Schneider contactors to the Omron encoders and Becker vacuum pump 4 is sourced from globally recognised brands. Built for reliability, not just specification sheets.

TECHNICAL SPECIFICATIONS

Full Machine Specifications

Model 1080G
Max Paper Size 1,060 × 740 mm
Min Paper Size 400 × 360 mm
Paper Thickness Range 1003600 gsm
Feeding Table Height 1,200 mm
Delivery Table Height 900 mm
Step Skip Command PLC Programmable Control
Max Working Pressure 160 tonnes
Foil Feed Width 1,000 mm
Foil Feed Groups 2 groups
Heating Zones 6 zones
Stamping Temperature Range 23200°C
Maximum Speed 5,000 sheets/hour
Total Power Consumption 19.2 kW
Machine Weight 6,000 kg
Machine Dimensions 3,600 × 2,800 × 2,000 mm

COMPONENT SOURCING

Main Configuration & Component Brands

The 1080G is built with globally recognised components, selected for performance, longevity, and safety compliance.
# Component Brand Country
1 Servo Motor Zhishan China
2 Feida Paper Feeder Xinguang China
3 Feed/Delivery Motor Yibang China
4 Vacuum Pump Becker Germany
5 Electromagnetic Clutch Xinguang China
6 Main Motor Shanghai China
7 Encoder Omron Japan
8 Proximity Switch Autonics South Korea
9 Thermal Overload Protector Schneider France
10 Buzzer / Signal Q-Light South Korea
11 PLC Controller Panasonic Japan
12 Solid State Contractor Yangming Taiwan
13 AC Contactor Schneider France
14 Buttons Schneider France
15 Photoelectric Sensor Sunx Japan
16 Touch Screen Flexem China
17 Chain KMC Taiwan
18 Timing Belt Dehong China
19 Conveyor Belt Yangtai China

IN THE BOX

Standard Accessories 4 Everything You Need to Get Started

Every 1080G ships with a comprehensive accessories package, ensuring your team can install, operate, and maintain the machine from day one.

Machine & Setup Accessories

  • Steel ladders (2 large, 1 small), pedal & cover plate
  • Cart track rack & paper-feed trolley
  • Paper boards (2 sets)
  • Heating aluminium plates (2 pieces)
  • Grease gun & oil pot
  • Full toolbox including flat,
  • Phillips, Allen, socket & chuck wrenches
  • Lifting motor set (1 set)
  • Eccentric gears (2 pieces)
  • Spline housing (2 pieces)

Operational Spare Parts

  • Electric heating plates (6 pieces)
  • Fibre optic signalers (2 pieces)
  • Contactors (3 pieces)
  • Inductive probes (2 pieces)
  • Foil retaining rings 4 stainless steel (20 pieces)
  • Foil top covers & springs (24 covers, 16 springs)
  • Feida suction cups, double-layer (40 pieces)
  • Z-shaped front gauges (6 pieces)
  • Hot stamping cloth (2 rolls)
  • 704 adhesive glue (40 pieces)
  • Paper sorting tools (4 pieces)
  • Tooth row assembly (1 set)
  • Foil threading rods (8 pieces)
  • Electric carbon brushes (3 pieces)

SHIPMENT

Ready to Ship Worldwide

Professional Packaging & Logistics

Each 1080G is carefully prepared for international freight 4 fully crated, protected, and documented for smooth customs clearance. Our export team manages the full shipment process, from factory to your facility.

Machine dimensions: 3,600 × 2,800 × 2,000 mm | Weight: 6,000 kg

Contact our sales team to discuss lead times, shipping terms (FOB / CIF), and installation support options.
